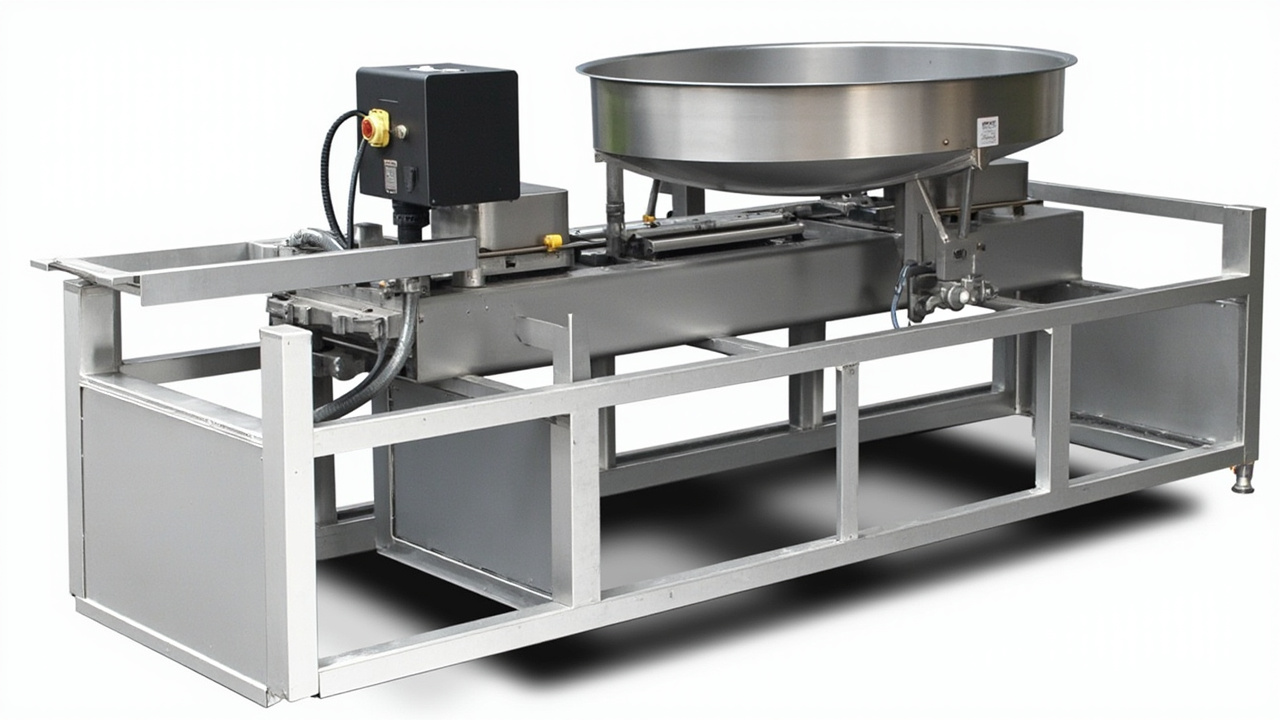

Vibratory Feeder for Stainless Steel Parts: Surface, Magnetic, and Handling Solutions

Stainless steel is common, but feeding it correctly is not automatic

Stainless steel parts show up in nearly every industry: food processing, medical devices, aerospace fasteners, semiconductor hardware, and general industrial assembly. SS304 and SS316 dominate the landscape, with SS17-4PH appearing in higher-strength applications. On paper, stainless is just another metal to feed. In practice, it brings four problems that standard feeder configurations handle poorly: surface sensitivity, magnetic variability, contamination risk from ferrous particles, and work-hardening from repeated vibration.

Each of these problems is manageable on its own. The difficulty is that they interact. A coating that protects a polished surface may interfere with magnetic orientation. A bowl that avoids ferrous contamination may lack the tooling durability needed for work-hardened parts. The right feeder for stainless steel is not a standard bowl with a different coating — it is a system-level adaptation that accounts for the material's specific behavior.

This article covers the engineering decisions behind each adaptation. For related material challenges, the titanium parts feeding guide addresses similar surface and non-magnetic issues, and the food-grade vibratory feeder guide covers hygiene requirements that overlap with stainless steel food-contact applications.

Surface sensitivity: why polished stainless scratches differently

Stainless steel parts often carry surface finish requirements that carbon steel parts do not. A brushed or mirror-polished SS304 fitting for architectural use must leave the feeder with its cosmetic finish intact. Medical-grade SS316L components may require Ra ≤ 0.4 μm on contact surfaces. Even industrial stainless fasteners with a passivated surface can show visible scratches that trigger customer rejection, because the scratch exposes bare metal below the chromium oxide layer and creates a cosmetic defect that also functions as a corrosion initiation site.

The chromium oxide passive layer on stainless steel is typically 1-3 nm thick. It self-repairs in oxygenated environments, but a deep scratch from a hard tooling edge or a steel-on-steel contact in the feeder can breach it faster than repassivation occurs, especially if the part is under mechanical stress or in a low-oxygen environment inside a bowl full of other parts.

In a vibratory bowl, parts contact the bowl surface, tooling features, and each other thousands of times per minute. For carbon steel fasteners, this is routine. For polished stainless, it is a damage mechanism that accumulates over the run. The damage is not always visible immediately — micro-scratches may only become apparent under 10× magnification or after a salt spray test reveals corrosion at the scratch sites.

• Reduce part-on-part contact: Fill the bowl to 30-40% of capacity instead of the typical 60-70% for steel parts. Lower fill density reduces collision frequency and the cumulative surface damage per run
• Soften all contact surfaces: Polyurethane (PU) coatings with Shore A 60-80 on the bowl and Delrin or PEEK on tooling contact edges prevent hard-edge scratching. Avoid bare stainless tooling where parts slide or impact
• Control discharge impact: Line discharge chutes with PU and limit free-fall distance to under 20 mm. Parts dropping onto a hard surface at the exit are a common source of dings on polished finishes

Magnetic variability: austenitic is not always non-magnetic

This is the problem that catches people off guard. SS304 and SS316 are nominally austenitic and therefore non-magnetic. In practice, cold working during forming, stamping, or machining can transform some of the austenite to martensite, making the part measurably magnetic. A stamped SS304 washer may have enough martensitic transformation at the bend radius to respond to a magnet, while the same alloy in an annealed state will not.

This matters for feeding because magnetic selectors are one of the simplest and most reliable orientation tools in a vibratory bowl. A magnetic selector that works perfectly for carbon steel screws may partially work for cold-worked SS304 screws and not work at all for fully annealed SS316 screws. The inconsistency is the real problem — if some parts in a batch are magnetic and others are not, the selector produces unreliable orientation, and the feeder's orientation yield drops unpredictably.

SS17-4PH (precipitation-hardened stainless) is a different case entirely. In the H900 condition, it is strongly ferromagnetic. Magnetic selectors work reliably, but the part's high hardness (HRC 40-44) means it can damage softer bowl coatings and tooling, creating the opposite surface protection problem.

When magnetic orientation is unreliable, the alternatives are mechanical tooling, air jet selection, and vision-guided flexible feeding. Mechanical tooling for stainless parts works the same way as for any other material — overhangs, wiper blades, contour guides, and drop-through slots — but the tolerances must account for the specific part geometry and the fact that stainless parts may have lower friction against certain coatings than carbon steel parts do against bare bowls.

Contamination risk: iron particles cause rust on stainless

One of the most insidious problems with feeding stainless steel parts is ferrous contamination. When iron or steel particles embed in the stainless surface — from contact with carbon steel tooling, from steel wear debris in the bowl, or from previous runs with steel parts — those particles rust. The rust appears as small brown spots on the stainless surface, often days or weeks after the parts leave the feeder. This is not the stainless steel corroding; it is embedded foreign iron corroding. But the customer sees rust spots on a stainless part and rejects the lot.

This problem is particularly severe for food-grade and medical-grade stainless parts, where contamination is not just cosmetic but a regulatory concern. A stainless bowl feeder that previously ran carbon steel parts may have microscopic iron particles embedded in its coating or trapped in tooling crevices. Those particles transfer to stainless parts during feeding, and the contamination may not be visible until the parts are in service.

Preventing ferrous contamination requires attention to the entire product path:

• Dedicated stainless feeders: The most reliable approach is to dedicate feeders to stainless parts and never run carbon steel in them. If shared use is unavoidable, the bowl must be stripped, cleaned, and inspected between material changeovers
• Non-ferrous product path: All surfaces in the product contact path should be stainless steel, PU-coated, or polymer. Avoid carbon steel springs, fasteners, or drive components that are exposed to the product zone
• Post-feeding passivation: For critical applications, run parts through a citric acid or nitric acid passivation bath after feeding. Passivation removes embedded iron particles and restores the chromium oxide layer. This adds a process step but provides a safety net for high-value parts

Bowl coating selection for stainless steel parts

The coating choice for a stainless steel parts feeder depends on which problem dominates: surface protection, contamination avoidance, or tooling durability. In many cases, the same coating addresses multiple concerns, but the priorities shift depending on the application.

Polyurethane (PU) is the most versatile choice for stainless feeding. Shore A 60-80 provides enough cushioning to prevent surface marring on polished parts while maintaining adequate durability for continuous production. PU coatings at 1.5-2.5 mm thickness also create a non-ferrous contact surface, eliminating the iron contamination risk from bare steel bowls. Food-grade PU formulations are available for food-contact applications.

For SS17-4PH and other hard stainless grades, the coating must resist wear from the parts themselves. Hard-coat PU (Shore A 80-90) or ceramic-reinforced PU extends service life, but at the cost of reduced cushioning. If the parts have no cosmetic finish requirement, harder coatings are acceptable. If they do, a hybrid approach — softer PU in the bowl with hardened inserts at high-wear tooling points — balances both needs.

PTFE (Teflon) coatings offer the lowest friction and excellent surface protection but wear through quickly under production conditions. Expect 4-8 weeks of service life in continuous operation before touch-up is needed. PTFE is best for low-volume or intermittent-use feeders where surface protection is the top priority.

• Polished SS304/SS316 (cosmetic or medical): PU coating, Shore A 65-70, 2 mm thickness — maximum surface protection with adequate durability
• Industrial SS304 fasteners (no cosmetic requirement): PU coating, Shore A 80, or bare stainless bowl with Delrin tooling inserts — durability priority
• SS17-4PH (hard, magnetic): Hard-coat PU with ceramic reinforcement at wear points — coating survival priority
• Food-contact SS316L: Food-grade PU or bare polished 316L bowl — regulatory compliance priority

Work-hardening from vibration

Austenitic stainless steels (SS304, SS316) have low yield strength relative to their ultimate tensile strength and they work-harden rapidly. When a stainless part bounces and impacts surfaces in a vibratory bowl, the localized deformation at impact points can increase hardness in those spots. For most industrial applications, this is not a functional problem — the part still meets its dimensional and mechanical specifications. But for parts with tight hardness specifications, such as medical implants or precision valve components, vibration-induced work-hardening can push local hardness beyond the specified range.

The practical risk is not that a single feeding pass transforms the part's bulk properties. The risk is that repeated impacts at the same location — for instance, where a part contacts a wiper blade or a track edge — create localized hard spots that may affect subsequent forming, machining, or welding operations. This is most relevant for thin-walled or small-diameter stainless components where the affected zone represents a significant fraction of the cross-section.

Mitigation is straightforward but involves trade-offs with feed rate:

• Lower amplitude: Reducing vibration amplitude by 20-30% compared to carbon steel parts of the same geometry reduces impact energy and the resulting deformation. Feed rate drops proportionally
• Softer contact surfaces: PU coatings absorb impact energy that would otherwise deform the part. The trade-off is that softer coatings wear faster and may need more frequent replacement
• Shorter dwell time: Reducing the time parts spend in the bowl — through faster orientation, larger discharge chutes, or reduced recirculation — limits the total number of impacts per part. This is the most effective approach when feed rate must be maintained

Orientation strategies for non-magnetic stainless

When magnetic selectors are off the table, orientation relies on mechanical tooling, pneumatic selection, or vision systems. Each approach has distinct trade-offs for stainless parts.

Mechanical tooling remains the default for most stainless feeding applications. Overhangs, contour guides, and drop-through slots work the same way they do for any material. The key difference for stainless is friction: stainless parts against PU or PTFE coatings have different friction coefficients than carbon steel against bare bowls. Tooling that relies on a specific slide speed or hang angle may need adjustment when the friction changes. Expect to tune wiper blade angles and overhang lengths during commissioning.

Air jet selection is effective for lightweight stainless parts under 5 grams. A photoelectric sensor detects orientation, and a solenoid valve fires a brief air pulse to blow incorrectly oriented parts off the track. Air jets avoid all mechanical contact during the selection step, which is valuable for polished parts. The limitation is speed: air jet systems cycle at 3-5 Hz, capping feed rates at 40-120 ppm depending on part geometry.

Vision-guided flexible feeding eliminates mechanical orientation tooling entirely. Parts are spread on a vibrating platform, identified by camera, and picked by robot. This approach is best suited for high-value stainless parts with complex geometries where the cost of dedicated tooling for each variant is prohibitive. Feed rates are lower (10-60 ppm), but the system handles part family changes without physical retooling.

Passivation after feeding: when it is necessary

Passivation is a chemical treatment that removes free iron from the stainless surface and enhances the chromium oxide layer. For parts that have been through a vibratory feeder, passivation serves two purposes: removing any iron particles that may have been picked up during feeding, and restoring the passive layer if it was mechanically damaged by contact with tooling or other parts.

Not every stainless feeding application requires post-feeding passivation. If the feeder has a dedicated non-ferrous product path, the parts have no cosmetic finish requirement, and the application is general industrial, passivation is usually unnecessary. The parts already have an adequate passive layer from their manufacturing process.

Passivation becomes important in three scenarios:

1. Food-contact and medical parts: Regulatory requirements (FDA, ISO 13485) often mandate passivation as part of the manufacturing process. If the feeder is part of that process, post-feeding passivation ensures compliance regardless of feeder contamination control
2. Shared feeders: If the feeder has ever run carbon steel parts, post-feeding passivation is a safety net against embedded iron contamination that visual inspection cannot reliably detect
3. Marine or chloride environments: Parts destined for saltwater or chloride exposure are extremely sensitive to iron contamination. Even microscopic embedded particles can initiate pitting corrosion. Passivation after feeding is cheap insurance compared to field failure

Citric acid passivation (ASTM A967) is the preferred method for most applications because it is safer to handle than nitric acid and produces comparable results. Typical cycle times are 20-30 minutes at 50-60°C. Nitric acid passivation (ASTM A380) remains the standard for aerospace and some medical applications where the specification has not been updated.

Frequently Asked Questions

Can I use the same feeder for stainless and carbon steel parts?

Technically yes, but it is not recommended for any application where surface contamination matters. Carbon steel runs leave microscopic iron particles in the bowl coating and tooling crevices. Those particles transfer to stainless parts in subsequent runs and cause rust spots. If shared use is unavoidable, strip and clean the bowl between changeovers, and passivate the stainless parts after feeding. Dedicated feeders eliminate this risk entirely.

Why do my SS304 parts respond to magnets sometimes?

Cold working during stamping, bending, or machining transforms some austenite to martensite in SS304. The transformed regions are ferromagnetic. The degree of transformation depends on the severity of the cold work — a deep-drawn cup will be more magnetic at the draw radius than at the flat base. This is normal metallurgical behavior, not a material defect. For feeding, it means magnetic selectors may work for some parts in a batch and not others, which makes them unreliable as the sole orientation method.

What coating lasts longest for stainless steel feeding?

PU coatings at Shore A 70-80 typically last 12-20 months in continuous operation for austenitic stainless parts. SS17-4PH and other hard stainless grades reduce coating life to 6-12 months due to their higher surface hardness. Ceramic-reinforced PU extends life by 30-50% in high-wear applications but sacrifices some cushioning. Inspect coating condition quarterly and plan recoating before wear-through exposes the bare bowl.

Does vibration damage passivated stainless surfaces?

The chromium oxide passive layer is only 1-3 nm thick. Mechanical contact in a vibratory feeder can locally breach this layer, but stainless steel repassivates spontaneously in oxygenated environments. The real risk is not the passive layer breach itself but the creation of a scratch or dent that traps contaminants or exceeds the surface finish specification. If the part has a tight Ra requirement, the concern is dimensional, not chemical. If the concern is corrosion resistance, repassivation handles it in most environments — but not in low-oxygen crevice conditions or chloride environments where repassivation is slow.

How do I validate the surface damage rate for a stainless feeder?

Run a minimum of 500 parts through the feeder under production conditions. Inspect 100% under 10× magnification for scratches, dings, and surface contamination. Document the reject rate for surface defects. For food and medical applications, the acceptable defect rate is typically less than 0.1%. For general industrial applications, less than 0.5% is common. If the feeder has a non-ferrous product path, also perform a ferroxyl test on a sample of parts to check for embedded iron contamination.

Conclusion

Feeding stainless steel parts reliably means adapting the vibratory feeder to the material's specific properties rather than treating it as a drop-in replacement for carbon steel. Surface sensitivity demands soft coatings and reduced part-on-part contact. Magnetic variability demands orientation methods that do not rely on consistent magnetic response. Contamination risk demands a non-ferrous product path and, for critical applications, post-feeding passivation. Work-hardening demands controlled impact energy. These adaptations are not exotic — they are standard engineering decisions that become necessary when the part material changes from carbon steel to stainless. The cost of ignoring them shows up in scrap rates, customer complaints, and field corrosion failures, not in an immediate feeder breakdown. If you need help specifying a feeder for stainless steel components, send us the part sample and application details and we can evaluate the practical options.
