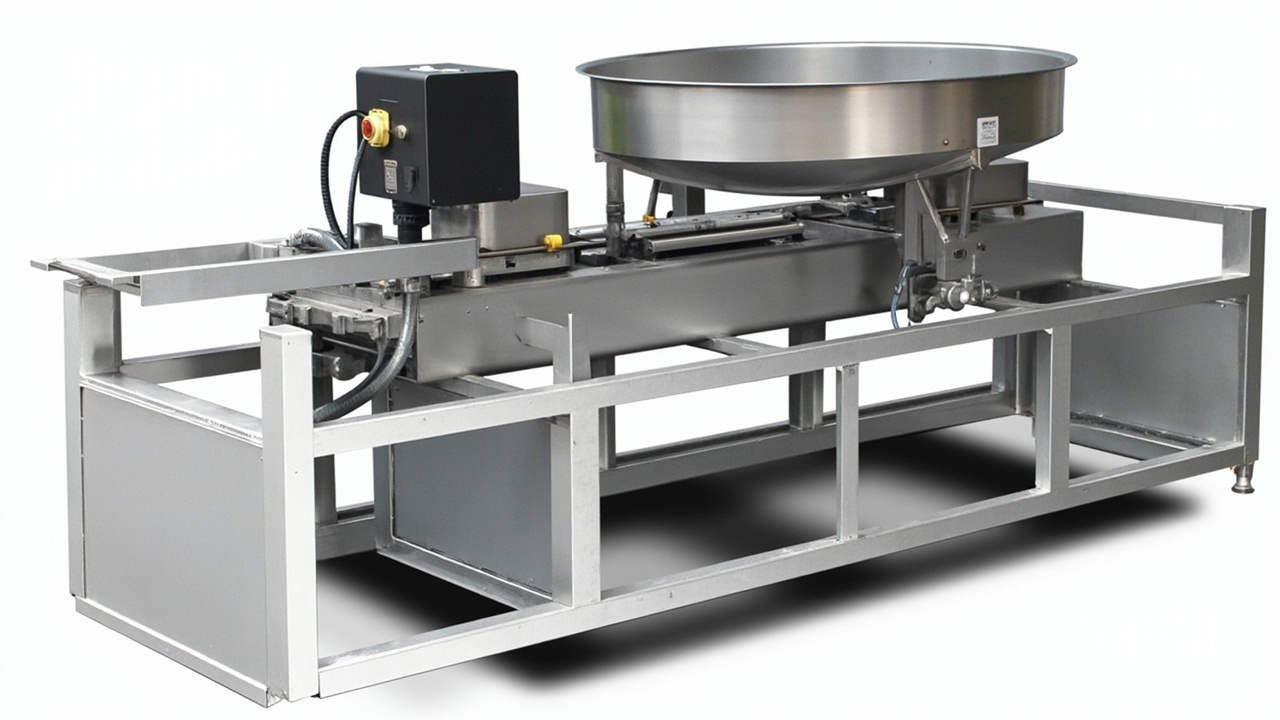

Vibratory Feeder for Titanium Parts: Handling Challenges & Design Solutions

Titanium changes the feeding equation in ways steel and aluminum do not

Titanium is one of the most valuable engineering metals in production today. Grade 5 (Ti-6Al-4V) fasteners, medical implants, and aerospace structural components all require automated feeding at some point in their manufacturing or assembly process. But titanium behaves differently from the steel and brass parts that most vibratory feeders are designed around, and those differences create real engineering problems.

The core issues are low mass, surface sensitivity, non-magnetic behavior, and high scrap cost. Each one affects feeder design independently, and together they compound. A feeder that works fine for stainless steel fasteners of the same nominal size may fail to orient titanium parts reliably, damage their surfaces, or reject them at rates that make the process uneconomical.

This article walks through each challenge and the design adaptations that address it. If your application sits in a regulated medical or aerospace environment, the medical device feeding guide and cleanroom parts feeding guide provide complementary context on validation and contamination control.

The low-mass orientation problem

Titanium has a density of approximately 4.5 g/cm³, roughly 57% that of carbon steel and 58% that of stainless steel. For the same geometry, a titanium part weighs less than half its steel equivalent. This matters because vibratory feeders orient parts using a combination of gravity, vibration energy, and mechanical tooling that assumes a certain mass-to-friction ratio.

When mass drops, parts respond differently to vibration. They bounce higher, slide more easily, and are more likely to be blown off tooling features by the vibration itself. A track width that correctly orients a 2-gram steel screw may allow a 0.9-gram titanium screw of the same dimensions to flip or ride up the wall. Tooling that relies on the part's weight to settle it into a groove or slot may not work because the part lacks the inertia to overcome minor friction or surface irregularities.

The practical consequence is that titanium parts often require lower vibration amplitude and more precise frequency tuning than their steel counterparts. Feed rates drop as a result. A bowl that delivers 200 ppm for an M4 steel screw might manage 100-140 ppm for the same screw in titanium, and achieving even that may require a different spring set and controller tuning.

• Lower amplitude: Reduce vibration amplitude by 30-50% compared to steel parts of the same geometry to prevent excessive bounce and disorientation
• Tighter track clearance: Reduce track-to-part clearance to 0.1-0.2 mm to limit the part's freedom to rotate or ride up walls
• Gravity tooling preference: Favor gravity-based orientation features (overhangs, drop-through slots) over features that rely on part inertia to function

Surface sensitivity and scratch prevention

Titanium parts in aerospace and medical applications often have tight surface finish requirements. Aerospace fasteners may require Ra ≤ 0.8 μm on contact surfaces. Medical implants may require Ra ≤ 0.4 μm or even mirror polish. Scratches, dings, or surface contamination that would be acceptable on a steel bolt are rejectable defects on a titanium component.

In a standard vibratory bowl, parts contact the bowl surface, tooling, and each other thousands of times per minute. For steel fasteners, this is routine. For polished titanium, it is a damage mechanism. The hard oxide layer on titanium (TiO₂) provides corrosion resistance but is thin — typically 5-20 nm on passivated surfaces. Mechanical contact in a feeder can locally breach this layer, creating cosmetic defects and potential corrosion initiation sites.

Preventing this damage requires attention to every contact surface in the feeder path:

• Bowl coating: Polyurethane (PU) coatings with Shore A hardness of 60-80 provide the best balance of cushioning and durability for titanium parts. Harder coatings like ceramic or tungsten carbide are too aggressive. Softer coatings like silicone rubber wear too quickly and may transfer material
• Tooling material: Use Delrin (acetal) or PEEK for orientation tooling contact surfaces. Avoid bare stainless steel tooling where the part slides or impacts
• Part-on-part contact: Reduce bowl fill level to 30-40% of capacity (versus 60-70% for steel) to lower collision frequency between parts
• Discharge handling: Use a PU-lined or PEEK-lined discharge chute. Avoid letting parts drop more than 20 mm onto a hard surface at the exit

Non-magnetic behavior and orientation alternatives

Titanium is paramagnetic with a magnetic susceptibility of approximately 1.8 × 10⁻⁴ (SI), effectively non-magnetic for practical purposes. This means magnetic selectors, magnetic escapements, and magnetic orientation features used for steel parts are completely ineffective.

For many steel fasteners, a magnetic selector on the bowl track is a simple and reliable way to ensure only correctly oriented parts pass — heads up, for instance. Without that option, titanium parts require mechanical or pneumatic orientation methods that are often more complex and less compact.

The most effective alternatives for titanium part orientation are:

Mechanical tooling: Standard bowl tooling — overhangs, wiper blades, contour guides, and drop-through slots — works for titanium parts just as it does for steel. The difference is that tooling must be designed and manufactured to tighter tolerances because the lower part mass provides less force to overcome tooling imperfections. A 0.3 mm gap that a steel part would push through may stop a titanium part dead.

Air jet orientation: For lightweight titanium parts under 5 grams, directed air jets are an effective orientation tool. A photoelectric sensor detects part orientation, and a solenoid valve fires a brief air pulse to either blow the part off the track (if incorrectly oriented) or push it into the correct position. Air jet systems add cost and require compressed air supply, but they avoid mechanical contact and work well for parts too light for reliable gravity tooling.

Vision-guided flexible feeding: For high-value titanium parts with complex geometries, a vision-guided flexible feeder eliminates the need for mechanical orientation tooling entirely. Parts are spread on a vibrating platform, identified by camera, and picked by robot. This approach avoids all surface contact during orientation and is particularly suitable for low-volume, high-value aerospace and medical parts.

Bowl coating selection for titanium

The bowl coating is the single most important design decision for a titanium parts feeder. It determines both surface protection quality and long-term feeding reliability. The wrong coating either damages parts or wears out prematurely, and in some cases both.

Polyurethane (PU) is the default choice for most titanium feeding applications. It provides a semi-soft contact surface that cushions impacts, has good abrasion resistance for long service life, and is available in food-grade and medical-grade formulations. PU coatings can be applied at thicknesses of 1-3 mm and are repairable — localized wear can be patched without recoating the entire bowl.

For medical implant applications, PEEK-lined contact surfaces offer superior biocompatibility and an even lower coefficient of friction, but at significantly higher cost. PEEK is typically used as insert strips in high-wear areas rather than as a full bowl coating.

PTFE (Teflon) coatings reduce friction effectively but are too soft for most production feeding. They wear through in weeks under continuous operation and can embed particles that contaminate the part surface. PTFE is best reserved for low-speed, low-volume applications where surface protection is paramount and throughput is not critical.

• General aerospace fasteners: PU coating, Shore A 70, 2 mm thickness — good balance of protection and durability
• Medical implants (polished): PU coating with PEEK inserts at tooling contact points — maximum surface protection
• Low-volume prototype parts: PTFE or silicone coating — acceptable wear life for intermittent use, excellent surface protection

Validation approaches for titanium feeding

Titanium parts feeding in aerospace and medical applications typically requires formal validation. The feeder is not just a machine — it is part of a controlled manufacturing process, and its performance must be documented and repeatable.

For medical device applications under FDA 21 CFR Part 820, the feeding system must undergo IQ/OQ/PQ validation. The critical validation parameters for a titanium parts feeder are feed rate consistency, orientation accuracy, and surface damage rate. Surface damage rate is the parameter most unique to titanium — it must be demonstrated that the feeder does not create scratches, dings, or surface contamination beyond defined limits over a statistically significant production run.

A practical validation approach for surface damage involves running a minimum of 500 parts through the feeder, inspecting 100% of them under 10× magnification, and documenting the reject rate for surface defects. The acceptable defect rate depends on the application but is typically set at less than 0.5% for aerospace and less than 0.1% for implant-grade medical parts.

For aerospace applications, the validation may also include a material verification step to confirm that the feeder does not introduce ferrous contamination. Titanium is susceptible to galvanic corrosion when in contact with iron particles, so any steel-on-steel wear within the feeder (such as spring contact points or drive components) must be shielded or isolated from the product path.

Frequently Asked Questions

Can a standard bowl feeder handle titanium parts without modification?

A standard bowl feeder designed for steel parts will likely feed titanium parts, but with problems: higher surface damage rates, lower orientation yield, and potentially unstable feed rates. The modifications needed — coating change, amplitude reduction, tooling tolerance tightening — are not optional for production use. They are the difference between a feeder that technically runs and one that runs reliably without scrap.

Why do titanium parts jam more often than steel parts of the same size?

Lower mass means titanium parts have less inertia to push through tight spots in tooling. A gap that a steel part passes through by momentum may stop a titanium part. The solution is tighter tooling tolerances (0.1-0.2 mm clearance instead of 0.3-0.5 mm) and smoother transitions at all tooling edges and corners.

Is air jet orientation reliable enough for production titanium feeding?

Air jet orientation is reliable when properly set up, with consistent compressed air supply (typically 0.4-0.6 MPa) and clean, dry air. The main limitation is speed — air jet systems cycle at 3-5 Hz, limiting feed rates to 40-120 ppm depending on part geometry. For high-speed lines above 150 ppm, mechanical tooling remains necessary despite the surface contact risk.

What coating life can I expect for a titanium feeding bowl?

PU coatings on titanium feeding bowls typically last 12-18 months in continuous operation before requiring touch-up or recoating. This is shorter than the 18-24 months typical for steel parts because titanium's oxide layer is abrasive. PEEK inserts in high-wear areas extend overall coating life to 18-24 months. Inspect coating condition quarterly for production feeders.

Can titanium and steel parts share the same feeder?

Not recommended. Even with a coating change, residual ferrous particles in the bowl from previous steel part runs can contaminate titanium surfaces. If a feeder must handle both materials, it requires a full cleaning and inspection between changeovers, and the coating must be compatible with both part types. Dedicated feeders are more practical and eliminate contamination risk.

Conclusion

Feeding titanium parts reliably requires adapting the vibratory feeder to the material's specific properties rather than treating it as a lighter version of steel. Low mass demands lower amplitude and tighter tooling. Surface sensitivity demands soft coatings and reduced part-on-part contact. Non-magnetic behavior demands alternative orientation methods. And high scrap cost demands validation that proves the feeder will not create defects over production runs. These adaptations are straightforward engineering decisions, but they must be made deliberately — a standard feeder running titanium parts is a risk that shows up in scrap rates and customer complaints, not in an immediate failure. If you need help specifying a feeder for titanium components, send us the part sample and application details and we can evaluate the practical options.
