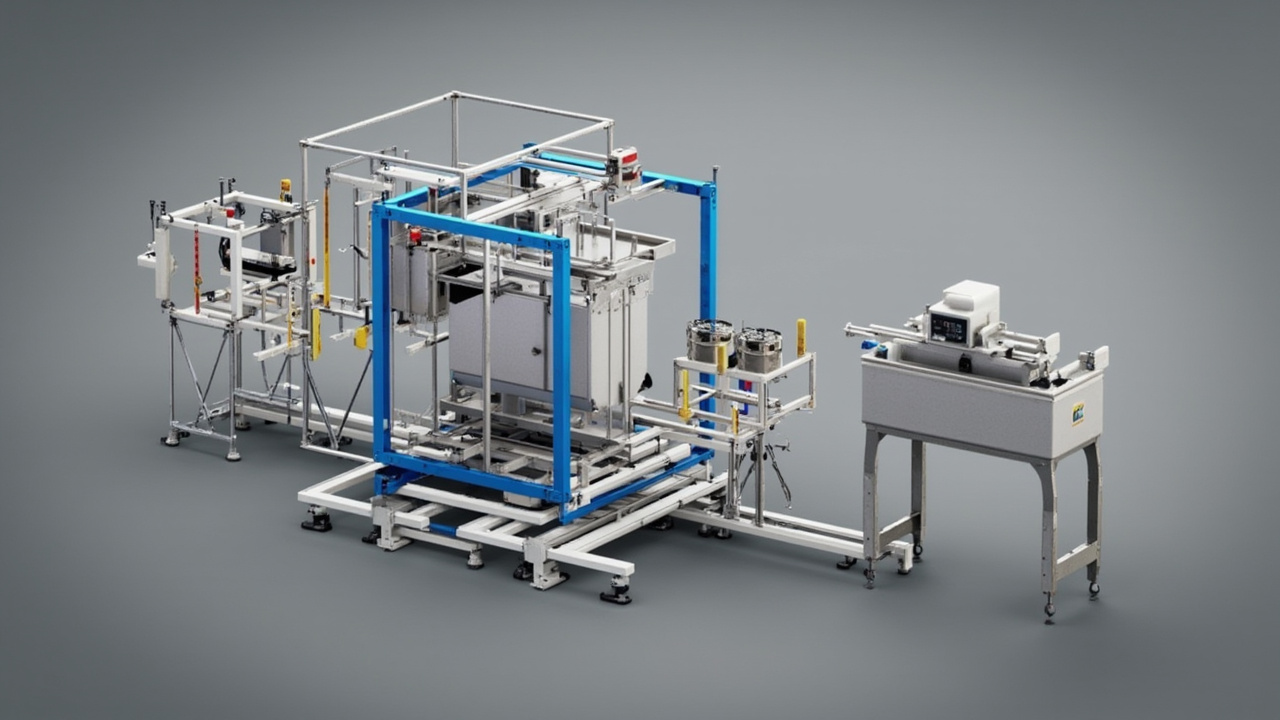

Feeder Vision System Integration Guide: Adding Inspection to Parts Feeding

Why add vision to a feeder that already works mechanically

A vibratory bowl feeder that orients parts reliably does not need vision inspection to function. But mechanical orientation alone cannot verify that every part is defect-free, correctly oriented in three dimensions, or even the right part for the current production run. These are the gaps where vision adds measurable value.

The integration is not trivial. Adding a camera, lighting, and reject mechanism to a feeder output changes the mechanical layout, the control architecture, and the cycle time budget. Done poorly, vision becomes a source of false rejects and unplanned downtime rather than a quality gate. This guide covers the engineering decisions that determine whether a feeder vision integration succeeds or becomes a liability. For background on vision-guided feeding architectures, see our vision-guided flexible feeding systems guide.

When vision adds value beyond mechanical orientation

Vision inspection at the feeder output is justified when the cost of a wrong or defective part reaching the next station exceeds the cost of the vision system. This sounds obvious, but the calculation needs to account for both direct scrap cost and downstream disruption cost.

• Orientation verification: The bowl orients parts in two dimensions. Vision confirms the third dimension, such as verifying that a threaded hole faces up rather than down, which a mechanical selector cannot distinguish. This is the most common feeder vision application.
• Defect detection: Surface cracks, missing features, flash, or deformation that occurred upstream (stamping, molding) can be caught before the part is assembled. This prevents assembling a defective part and then scrapping the entire assembly.
• Presence confirmation: Verifying that a part is actually present at the pickup position before the robot or escapement attempts to grab it. This prevents air picks and the downstream chaos they cause.
• Part family verification: On lines that run multiple part families, vision confirms that the correct part is being fed after a changeover. This is a safeguard against human error in the changeover process.

Vision is not justified when the mechanical orientation is already reliable and the downstream process has its own inspection. Adding a second inspection point that duplicates an existing check is waste, not quality improvement.

• Key takeaway: Apply vision at the feeder output when it catches defects that mechanical tooling cannot detect and that downstream inspection does not already cover. Every other scenario is a cost without a corresponding benefit.

Camera types and selection criteria

The camera choice is driven by the inspection task, the part speed, and the available mounting space. There is no universal best camera; there is only the right camera for a specific set of constraints.

For most feeder output inspections, a global-shutter area scan camera in the 2-5 MP range is the correct choice. Global shutter eliminates motion blur on parts moving at feeder output speeds (typically 100-300 mm/s). Rolling shutter cameras are cheaper but produce distorted images on moving targets unless the exposure time is extremely short, which then requires very bright lighting.

Line scan cameras are useful when parts move continuously past the inspection point without stopping, such as on a conveyor outfeed. They build an image line by line as the part passes, which eliminates the need for a trigger to capture a single frame. The trade-off is more complex image processing and higher data throughput.

3D cameras are overkill for most feeder applications unless the inspection specifically requires height or surface profile measurement. They are slow, expensive, and generate large point clouds that require significant processing time.

Lighting design for metallic and plastic parts

Lighting is more important than camera resolution for inspection reliability. A 2 MP camera with correct lighting will outperform a 12 MP camera with poor lighting every time. The lighting design must account for the part material, geometry, and the specific features being inspected.

Metallic parts (steel, aluminum, brass): Reflective surfaces create hot spots and shadows that confuse edge detection. Use diffuse lighting to minimize specular reflections. A dome light or a polarized ring light with a cross-polarized camera filter eliminates most glare. For orientation verification where you need to see a feature like a slot or hole, a low-angle darkfield ring light creates contrast at edges without illuminating the flat surface.

Plastic and rubber parts: Non-reflective surfaces absorb light and produce low-contrast images. Use bright, directional lighting such as a high-intensity LED bar light or a coaxial light for flat surfaces. For colored parts, match the light color to the feature being inspected; a red LED will make a red feature disappear but will highlight a green or blue feature against the red background.

Mixed-material assemblies: When a part has both metal and plastic regions, use a combination of diffuse and directional lighting with separate exposure settings for each region. Some smart cameras support multiple exposure modes in a single trigger cycle.

• Key takeaway: Budget 30-40% of the vision system cost for lighting. A $500 camera with a $300 lighting setup will outperform a $2000 camera with a $50 ring light. Test lighting on actual parts before finalizing the camera selection.

Reject mechanism integration

When the vision system identifies a bad part, it must be removed from the feed stream before it reaches the downstream station. The reject mechanism must be fast enough to act within the available time window and reliable enough that bad parts never pass through.

The air jet is the most common reject mechanism for bowl feeder outputs because it is fast, simple, and requires minimal mechanical modification. A 6 mm or 10 mm nozzle connected to a 5/2 solenoid valve at 4-6 bar will reliably blow most small parts off a linear track within 20 ms of the vision trigger.

The critical design parameter is the time window between the vision trigger and the part reaching the reject point. If parts are moving at 200 mm/s and the reject nozzle is 100 mm downstream of the camera, the part arrives in 500 ms. The vision processing must complete and the solenoid must fire within this window. Most industrial smart cameras process in 10-50 ms, so this is rarely a constraint for parts below 30 ppm.

For flexible feeding systems where a robot picks directly from the feeder surface, the reject strategy is inverted: the robot picks only the parts that pass vision inspection and leaves the bad parts behind. This eliminates the need for a separate reject mechanism but requires the vision system to communicate pick coordinates to the robot, which adds latency.

PLC communication protocols

The vision system must communicate its pass/fail decision to the PLC or robot controller that triggers the reject mechanism. The communication protocol affects both the integration complexity and the response latency.

• Discrete I/O (hardwired): The simplest and fastest method. The vision system sets a digital output high for pass and low for fail. The PLC reads this as a direct input. Response time is under 5 ms. This is sufficient for simple pass/fail decisions but cannot convey additional data like defect type or part coordinates.
• EtherNet/IP or PROFINET: The standard for PLC integration in automotive and general manufacturing. The vision system appears as a node on the industrial network and can exchange structured data (pass/fail, defect code, coordinates, confidence score) with the PLC. Setup requires configuring the network parameters and data mapping, which adds 2-4 hours of integration work.
• Modbus TCP: A lighter-weight alternative when the PLC does not support EtherNet/IP. Simpler to configure but slower (typical cycle times of 20-100 ms depending on the network load). Adequate for most feeder applications where the inspection rate is below 30 ppm.
• OPC UA: Increasingly common in modern factories. Provides standardized data models and built-in security. The overhead is higher than discrete I/O but the interoperability is better for multi-vendor systems.

For a basic feeder vision system inspecting orientation and presence, discrete I/O is the right choice. It is fast, reliable, and requires no network configuration. Upgrade to EtherNet/IP or PROFINET when the vision system needs to send defect codes for statistical tracking, or when the PLC needs to adjust feeder parameters based on vision data.

Cycle time impact analysis

Adding vision inspection to a feeder output always adds time. The question is whether the added time fits within the existing cycle budget or forces a line speed reduction.

The total vision latency is the sum of image acquisition time, processing time, communication time, and reject actuation time. For a typical system:

• Image acquisition: 2-10 ms (exposure + transfer)
• Processing: 10-50 ms (depending on algorithm complexity)
• Communication: 1-5 ms (discrete I/O) or 20-100 ms (network)
• Reject actuation: 10-30 ms (air jet) or 30-80 ms (cylinder)

The total ranges from roughly 25 ms to 190 ms. At a feed rate of 30 ppm, one part exits every 2000 ms, so even the slowest configuration fits comfortably. At 60 ppm, the interval drops to 1000 ms, which is still sufficient. At 120 ppm, the interval is 500 ms, and the slower configurations start to become marginal.

The more common cycle time problem is not the vision latency itself but the physical space it consumes. The camera, lighting, and reject mechanism add 150-300 mm to the outfeed track length. If the downstream station was already positioned close to the bowl, this extra distance may require relocating equipment or extending the linear track.

• Key takeaway: For feed rates below 60 ppm, vision latency is almost never the bottleneck. The physical layout impact, the space needed for camera, lighting, and reject hardware, is the constraint that usually requires design attention. Plan the vision integration into the station layout from the beginning rather than retrofitting it into a space that was not designed for it.

Frequently asked questions

How much does feeder vision integration cost?

A complete feeder vision system including camera, lens, lighting, reject mechanism, and integration typically costs $3,000-8,000 for a basic orientation and presence check. More complex defect detection systems with high-resolution cameras and custom algorithms range from $8,000-20,000. The lighting and reject hardware often cost as much as the camera itself.

Can vision replace mechanical orientation in a bowl feeder?

Vision can verify orientation but should not replace it for high-speed applications. A bowl feeder mechanically orients parts at 40-120 ppm with near-zero processing latency. Vision-guided flexible feeding, where the robot picks any orientation and the vision system determines the correct pick pose, runs at 15-30 ppm. Use vision to verify what the bowl already does mechanically, not to replace proven mechanical orientation at speed.

What lighting works best for shiny metal parts in a feeder?

Diffuse dome lighting or polarized ring lighting with a cross-polarized camera filter. These approaches minimize specular reflections that create hot spots on metallic surfaces. Low-angle darkfield lighting is effective for highlighting edges and surface features like slots or holes. Avoid direct on-axis lighting, which produces blinding glare on polished surfaces.

How do I handle false rejects in a feeder vision system?

False rejects are usually caused by lighting variation, part position variation, or overly tight inspection thresholds. Start by stabilizing the lighting (use constant-current LED drivers, not PWM dimmers) and constraining the part position at the inspection point (add a simple mechanical guide or escapement). Then adjust the inspection thresholds to the minimum sensitivity that catches real defects. A false reject rate above 2% usually indicates a lighting or fixturing problem, not a threshold problem.

Should I use a smart camera or a PC-based vision system for feeder inspection?

Smart cameras (Cognex In-Sight, Keyence CV-X, SICK Inspector) are the right choice for 90% of feeder vision applications. They integrate the camera, processor, and I/O in one package, have built-in inspection tools, and communicate directly with PLCs. PC-based systems are only justified when you need custom algorithms, very high resolution (above 12 MP), or multi-camera synchronization that smart cameras cannot handle.

Conclusion

Adding vision inspection to a feeder output is a straightforward engineering project when the scope is clear: verify what the mechanical tooling cannot confirm, reject bad parts before they reach the next station, and keep the cycle time impact within the production budget. The most common failure mode is not the technology itself but scope creep, trying to inspect for defects that are better caught upstream, or adding vision where downstream inspection already exists. Start with the simplest camera and lighting that solves the defined inspection task, use discrete I/O for communication, and validate the system against real production parts before committing to the installation. For help specifying a vision system for your feeder application, contact Huben Automation with your part samples and inspection requirements.
